Applications using CONEC Connectors

CONEC connector portfolio

to the product area




The I/O connection system has been invaluable to electronic applications for many years.

These products are used in nearly all application markets, from control and measuring to telecommunications and computer applications. Owing to the combination of various contact types there are numerous possibilities of saving installation space and costs in the interface area. CONEC D-SUB connectors are available in five standard housing sizes in the variants Standard, High Density and Combination with or without filters. to the product area

to the product area




Special applications have special requirements for connectors.

For this field of application, CONEC developed water-tight D-SUB connectors with rating IP67. Owing to special sealing measures at the connector and the sealing frame, the high requirements are met. These connectors are used where dust and spray water occur and functioning of usual connectors would be negatively affected. These connectors are available as standard or high density in the usual pole number. D-SUB Combination and D-SUB filter connectors are also available in protection class IP67. to the product area

to the product area




Data communication is also required in outdoor applications.

Whether in traffic engineering, in maritime environments or mobile phone applications, long transmission distances and impacts such as heat, rain, snow, salty mist and dust place high demands on all connectors. The IP67 connectors developed by CONEC provide reliable protection against environmental influences and mechanical stress. The broad portfolio includes RJ45, USB/Mini USB and Fibre Optic LC Duplex connectors in plastic, metalized plastic or full metal. to the product area

Hybrid connectors

to the product area




Saving costs and installation space in interface wiring by using intelligent hybrid connector technology.

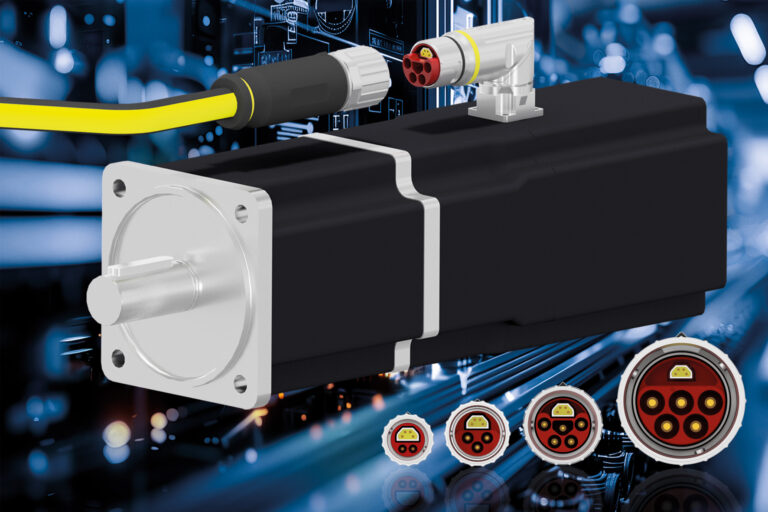

For conventional wiring of motors, servo-drives or linear units/drives, time and costs for cabling, maintenance and diagnostics are very high. Separate cables from the switch cabinet are used for the power supply and control of every single motor. This procedure does not only require much space, but also causes high costs. With the new CONEC series, a compact hybrid connector system has been developed, combining power supply and data transmission in one single connector to the product area

to the product areas



High-performance connector technology is the basis for industrial networking of devices, machinery and manufacturing plants.´

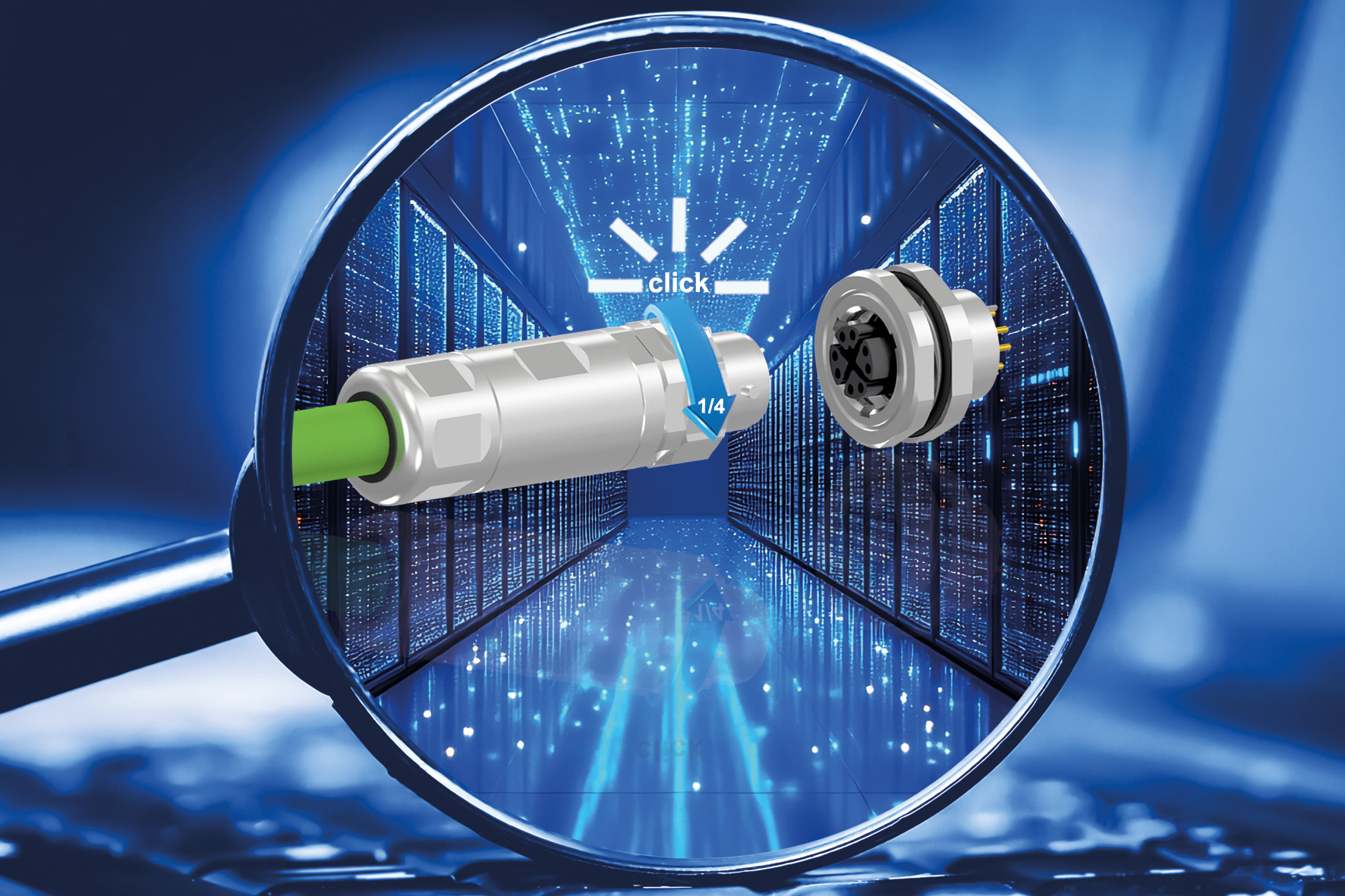

High-performance connector technology is the basis for industrial networking of devices, machinery and manufacturing plants. Circular connectors are used in many applications in automation engineering. In addition to the transmission of analogous and digital signals and data transmission with high bandwidth, the application as supply connector also counts amongst their fields of application. CONEC offers circular connectors in the in the sizes M8, M12, 7/8“ and Round24. Available are connectors with mould-on cable or tailored for special applications as well as BUS systems and panel mount connectors. to the product area

to the product area




CONEC – Your specialist for connectors in the fields of agricultural, construction and municipal technology

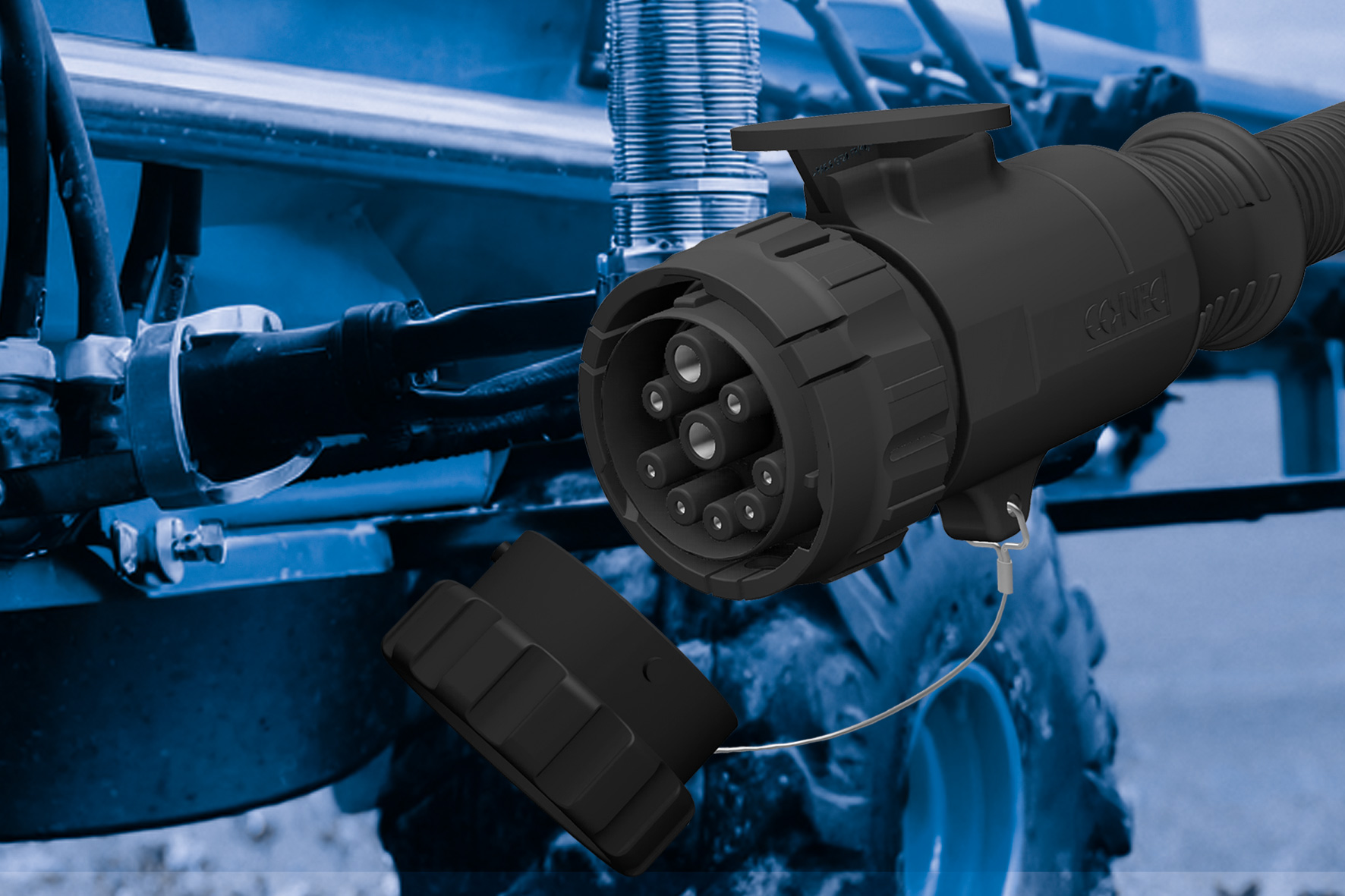

The degree of automation is also constantly increasing in agricultural, construction and municipal technology and thus the need to equip machines with sensors and other electrical components. The overmolded versions of the DT and VSS Superseal connector series developed by CONEC offer optimum protection even in the most difficult applications such as underground, at temperatures below zero or in dusty, hot environments. With the increasing demands for efficiency in agriculture, precision farming is becoming more and more important. Precision Farming stands for the targeted management of agricultural land, such as the application of fertiliser and pesticides according to need, depending on the position on the land. To ensure the necessary communication between tractor, implements and agricultural management software, the manufacturer-independent ISOBUS is used. The new CONEC junction system type S, M, L provides a flexible way to integrate moulded branches/outlets into electrical connecting lines such as e.g. cable harnesses. to the product area

to the product area



CONEC offers a broad portfolio of connector solutions for the board level.

Part of this range are Compact PCi, AdvancedTCA, MicroTCA, PC104/PC104Plus, DIN EN 60603-2, DIN 41617TE as well as Din 41651 flat cable connectors. Optionally and depending on the connector type, models with turned or stamped contacts in soldering, press-in or crimp technology are available to the product area
